ANTENNAS |
|
|
June
12, 2009
Television Has Evolved |
|
|
Federal law requires that all full-power television
broadcast stations stop broadcasting in analog format and
broadcast only in digital format by June 12, 2009. Your
local broadcasters may make the transition before then, and
some already have. So be ready. If you have one or more
analog televisions that receive free over-the-air television
programming with an outdoor antenna or “rabbit ears” on
the TV, you will either need a digital television (a TV with
a built in digital tuner) or an analog television connected
to a “digital-to-analog converter box” (which converts
digital signals to analog signals for viewing on your analog
set) in order to continue to watch programming from
full-power broadcast stations. This Fact Sheet provides
information on antennas and on what is needed for good
quality reception of digital broadcasts.
Try
Using Your Existing Antenna First
First,
it is important to know that if your television currently
receives good quality reception on analog channels 2-51 with
a broadcast antenna, it should be able to receive digital
television (DTV) signals, including high definition
television (HDTV) signals, with the same broadcast antenna.
You do not need to purchase a "DTV antenna" or an
“HDTV antenna” to receive DTV or HDTV signals. However,
consumers should be aware that if they use a
digital-to-analog converter box, they will still need to use
an antenna to receive DTV signals.
Prior to making any changes to your current antenna or
antenna system, you should check to see if it will receive
the digital signals being broadcast in your area. Connect
your existing antenna to either a digital television or a
digital-to-analog converter box connected to an analog TV.
Make sure your TV is set up to receive over-the-air
broadcasts (as opposed to being connected to a paid provider
such as a cable or satellite TV company). It may also be
helpful to perform a “channel scan,” in which your TV
will automatically check to see which stations it can
receive. In many cases, this is all you will need to do to
watch digital television broadcasts.
|
|
GRANBY TV OFFERS MANY OFF-AIR ANTENNA SOLUTIONS
Below are some of the reception products we offer. Give us a call so we
may suggest a
specific antenna system that will fulfill your needs.
|
|

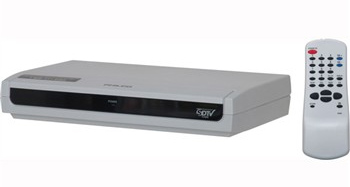

DTV
Converter Box
Features:
- Composite audio/video outputs
- Trilingual (English, French and Spanish) on-screen setup
- Supports V-Chip parental controls and digital closed
captioning
- EnergyStar compliant
- RF pass through
- Analong Pass through
- Simple EPG (electronic program guide)
- Includes remote control
weight: 2.3 (lbs)
|
$59.00
we
do not support the
National Coupon Program |
|
|
|
Winegard High
Definition Antenna's
|
The SquareShooter™ solves problems no other
antenna can solve in the Urban/Metropolitan
locale. The only current way to receive true
HDTV resolution (1080i) is with an
Off-Air antenna or satellite broadcast
signals.
Granby TV
price:
#SS1000
$99.00
#SS2000 $129.00
|
|
Range
for Channels (7-13): 0-35 Miles (Analog),
0-40 Miles (Digital) |
|
• Range for Channels (14-69): 0-45 Miles
(Analog), 0-50 Miles (Digital) |
|
• Includes hardware to mount to standard
DIRECTV / DishNetwork dish masts |
|
• Average beamwidth: 61° |
|
• Average VSWR across band: 1.3:1 |
|
• Average Front to back: 13 db |
|
• Average gain across band 470-806: 4.5 db |
|
• Maximum Width: 16 x 16 x 4 |
|
• Comes with J-Type Mast and Mount. |
|
• Integrated 12dB gain amplifier across both
UHF/VHF bands for better reception of
digital HDTV channels. |
|
• Choose amplified model SS-2000 with
built-in pre-amp when 25 miles from tower or
further. |
|
• Range for Channels (2-6): 0-10 Miles
(Analog), 0-15 Miles (Digital) |
|
Sensar® III for home
GS-2200
|
|
Winegard’s Sensar®III, with gray
housing and elements, perfect for home use.
Sixty-eight channels, bi-directional, excellent
reception in metropolitan areas. Bracket for
mounting on pole or flat surface included; fits
masts up to two inches in diameter.
Manufactured from ABS Magnum
9555* and other materials that will not corrode.
Patent No. 5,262,793.
*Trademark of THE DOW CHEMICAL
COMPANY
Available models:
Model GS-2200
amplified antenna is recommended for areas 10 to 55
miles away from transmitters. Includes 117 VAC power
supply, easy-to-install mast clamp assembly.
Model GS-1100,
non-amplified, is recommended for reception in
metropolitan areas up to 25 miles away from
transmitters. GS2200
- Granby TV
Price: $69.00
GS1100 - Granby TV price: $49.00 |
|
URBAN ANTENNA'S
MS-2000
|
METROSTAR® AMPLIFIED
OMNIDIRECTIONAL
TV ANTENNA
MS-2000 MetroStar, for homes, apartments, mobile
homes, condos, townhouses, offices; excellent
VHF/UHF reception. |
|
Omnidirectional for install-&-forget convenience; no
rotator system needed, built-in preamplifier to
boost signal strength—up to six times the received
signal on VHF, nine times on UHF. Easy to install
with hand tools on any antenna mast or light-duty
antenna mount. Includes antenna, power supply, 50'
75 ohm coaxl cable, 6' TV set cable, hardware,
mounting bracket. Good companion for digital
satellite systems.
Granby TV
price: $99.00 |

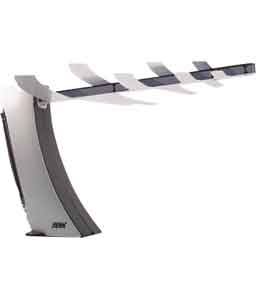

TERK
INDOOR AMPLIFIED
UHF/VHF HDTV ANTENNA
Granby TV
Price: $59.00
TERK
CLIP-ON W/DIPLEXER
WORKS WITH ANY ELLIPTICAL DISH
Granby TV
Price: $69.00
|
|
|
|
|
|
WINEGARD
HD7084 VHF/UHF/FM/ HIGH DEFINITION T.V. ANTENNA
HD7084P
The HD7084
offers you the highest standards of
excellence in construction and
performance
Powerful performance even in weak
signal areas.
Length 131"
Application: Deep Fringe reception
of VHF/UHF/FM/High DefinitionRANGE
40 TO 80 miles
Granby TV price: $139.00
|
|
|
|
|
|
|
Winegard HD
7697P Platinum HD
VHF/UHF/FM Antenna |
| • Turning
Radius 81.1" |
| • Element
Diameter: 3/8" |
| • Vertical
Height: 25.3" |
| • Maximum
Width: 53" |
| • Boom
Length: 131.25" |
| • VHF
Elements: 23 |
| • UHF
Elements: 30 |
| • Range:
60 Miles VHF & 50 Miles UHF |
| • Includes
hardware for mounting to a mast, and 75ohm
transformer for coax connection |
| • Active
Elements: 53 |
Granby TV price: $129.00
|
|
|
|

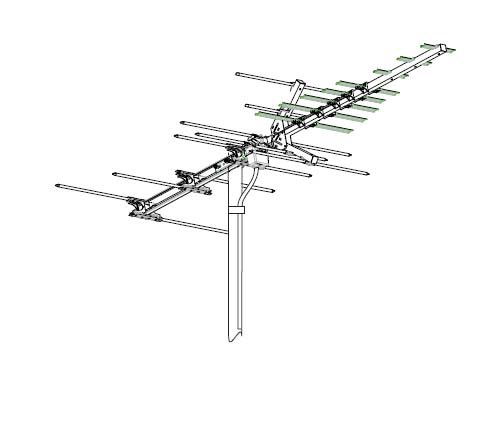

Winegard HD
7694P Platinum HD
VHF/UHF/FM Antenna
- Includes
hardware for mounting to a mast; antenna has a 75
ohm coax connection
- Estimated
Range: 30 miles VHF & 25 miles UHF
- UHF
Elements: 17
- VHF
Elements: 11
- Boom
Length: 65"
- Maximum:
35"
- Element
Diamter: 3/8"
- Turning
Radius 43.25
Active Elements: 28
Granby TV price: $89.00 |
|
|
|
|

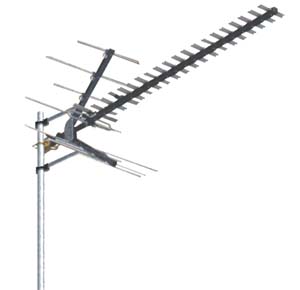

Winegard High
Definition UHF Antenna
HD9095P
39
ACTIVE ELEMENTS
BOOM LENGTH - 94.75"
Granby TV price:
$89.00
|
Winegard
Chromstar 2000
UHF/VHF PreAmplifier
AP8275
- 75 ohm
input, 75 ohm output
- 29dB VHF,
28dB UHF gain
- 2.9dB
VHF, 2.8dB UHF avg. noise
Granby TV price:
$75.00
|
|
|
|
|
|
Amplifiers |
|
CM7777
UHF/VHF PRE-AMP
VHF 23 DB gain
UHF 26 DB gain
Granby TV price: $69.00
|

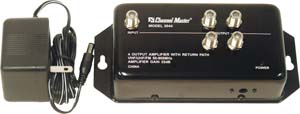

CM3044
(4 output Distribution amp)
50-900 mhz
22 DB gain
Granby TV price: $39.00 |
|
Channel Master CM 0068DSB VHF/UHF/FM Spartan 3 Outdoor
Pre-Amp (CM0068DSB)
|
|
The industry
standard 0068DSB features a single 75 ohm VHF/UHF
input and a single 75 ohm output. |
|
• Surface-mounted components for automated
production and consistent high performance |
|
• Attractive,
modern design for both outdoor unit and power
supply |
|
• Easiest
installation in the industry |
|
• High gain
and ultra low noise figure from the latest
generation transistors gives optimum sensitivity |
|
• Separate VHF
and UHF amplification plus the use of ultra linear
transistors improve output capability for optimum
signal handling. |
|
• Switchable
and tunable FM traps provide full FM control where
needed. |
|
• Uninterrupted operation even under the harshest
environmental conditions. |
|
• Full
lightning and surge protection |
Granby TV price: $59.00 |
|
|

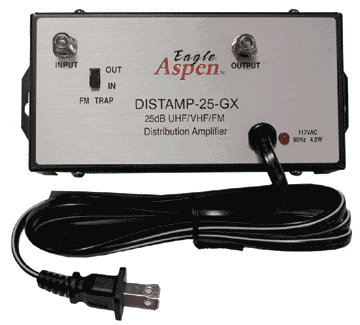

Eagle
Aspen 25dB Off-air/CATV Distribution Amplifier
(DISTAMP-25GX)
Use with multiple set hook-ups
Granby TV price: $19.00 |
|
|
|
|
|
|
|
Channel
Master CM 3020
Deep Fringe w/split boom U/V TV Antenna
(CM3020)
Granby TV price: $130.00
|
|
|
|
|

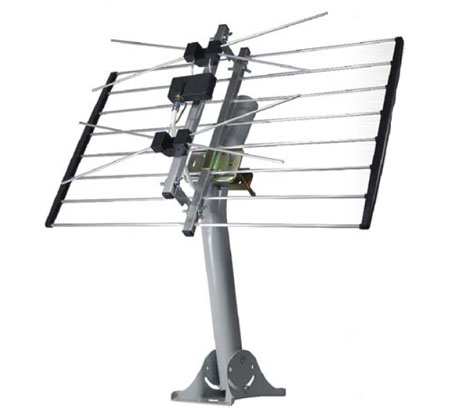

Channel
Master CM 4220MHD
(2 BAY UHF ANTENNA)
Granby
TV price: $59.00
|
CM-9521
Programmable
remote control ANTENNA ROTOR
Granby TV price: $169.00
|
|
We
also sell all the hardware it takes to install your own system !! |
|
Antenna mounts |
|
CALL
TO ORDER
 |
|
