DIRECTV SATELLITE DISH, Equipment, and
Accessories |
|
We have all the Satellite Dish's, equipment, and accessories
that you might need to complete your installation.
Installations requiring special mounting hardware, electronics, or
specific cable for long runs is
also our specialty. We carry hardware, and materials for both residential,
and commercial installs.
Sorry, but we ship USA ONLY
Send us an e/mail or give us a call to discuss your needs. 413-467-3278
granbytv@comcast.net |
DIRECTV SATELLITE DISH's
|
DIRECTV
SLIMLINE
The AU-9 Slimline dish from DIRECTV is smaller, lighter and better looking. It
can be used with the SL5 to receive 101*, 110*, 119* satellites, plus the KA
satellites (99*, 103*) for most HD programming. (use for all DTV
solutions)
(HD
programming requires use of H20/H21/H23/H24/H25
receivers or HR20/HR21/HR23/HR24/HR34/HR44/54 receiver/DVR)
NOTE: some receivers will require the SUP2400 "B" band converter
For installations in areas which do not require reception of 110*, and 119* the
SL3 can be used to receive programming from 99*,101*,and 103*
Four outputs carry satellite signal from all Five satellites (SL5) or all
Three satellites (SL3)
Heavy duty j-mount with 2" outer diameter mast
Dish surface area dimensions:
22.5 in. x 32.5 in.
LNBF arm with LNBF's attached extends 23.5" from the dish surface area
Weight: 25 lbs (including J-mount mast, reflector, SL5, arm and az/el/pol attachment)
(system comes with support arms 1-long, 1-short)
WARNING: The
AU9 DTV satellite
systems operates between 250 and 2150 mhz thus not allowing the diplexing of off-air, or cable signals.
If you need to connect this system to more than 4 receivers you will need
a KU/KA compatible multiswitch as shown below, or choose SWM technology, and use SL5-S or SL3-S. >See below<
|
KA/KU band
DIRECTV SLIMLINE
Satellite dish (AU-9)
With 3D2RBLNB (reverse band lnbf)
UltraHD 4K (13 tuner capable)
$99.00
(Call to order 413-467-3278)
|
|
DIRECTV
KA/KU SLIMLINE DISH
SLSPF
(no LNBF)
(Call to order
413-467-3278) $59.00
|

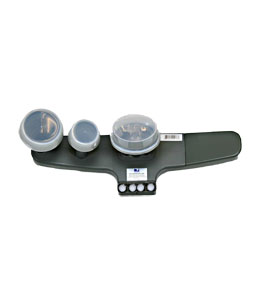

DIRECTV SL5 LNBF
SL5
(multiport)
(for
reception of 99*-101*-103*-110*-119*)
(Call to order 413-467-3278) $48.00
|
|
6X8 WB MULTISWITCH
(used when connecting
more than 4 tuners)
(Call to order 413-467-3278)
$39.00 |
SL3
(multiport)
(for
reception of 99*-101*-103*)
(Call to order 413-467-3278) $39.00
|
|
DTV66E International Dish antenna
$149.00
(Call to order 413-467-3278)
|
-
DirecTV 36" International Dish (87CM)
-
For International / Ethnic DirecTV Programming
-
Includes
(1) .87m WorldDirect International Dish
-
Includes
(1) Required LNB for 95 WL Satellite
-
Includes
(1) Required LNB for 101 Satellite
-
Includes
(1) Required Bracket to hold 101 and 95 LNBs
-
Includes
(1) Required Universal Mounting Bracket
-
Includes
(1) Easy to use Instructions
-
Requires an Optional Multi-Switch 6X8 WB
|
SWM
(single wire multiswitch) Technology
These products are
used with the SLSPF (Slimline Dish) and compatible IRD's
Call us to discuss your specific needs
413-467-3278
|
SL5-S
$79.00
|
What
is SWM ?
Single
Wire Multiswitch products are designed to provide
DIRECTV® programming from all current and future
KaKu satellites via a single RG-6 coaxial cable home run
to a set of multiple IRD's connected using one or more
Splitters within a customer’s home.
SWM products allocate channels (frequency blocks) for
viewer selected programming to the SWM compatible IRD's.
These channels (frequencies) contain the programming guide
data and user selected programming channels
|
|

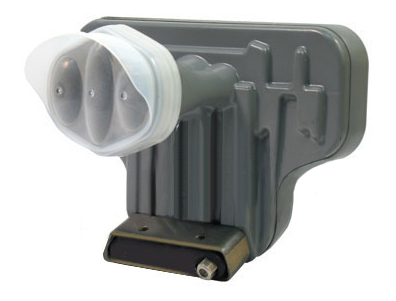

SL3-S
3D2RBLNB

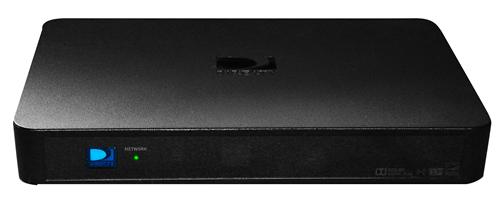

(use with C61K for 4ktv)
$59.00
|
SWM
Hardware
SWM
Integrated LNB
Built in multiswitch
Five
orbital slots (119°/110°/103°/101°/99°)
– part number SL5S
Provides
a maximum of 8 Channels
Can not be connected to a SWM Module
Three
orbital slots (103°/101°/99°)
– Part number SL3S
Part number 3D2RBLNB
used with HR54 and C61K for 4KTV
The SWM ODU is powered by a separate 21 volt DC power inserter.
|
|

SWM-8kit $99.00
SWM-16kit $149.00
|
SWM
Module's
8
Channel –
Two SWM output
ports, Three Legacy output ports
Will support up to 8 tuners. Example, Four HD DVR IRD’s
16 Channel
–
Supports
six (6) LNB inputs, each triple-band stacked four ports (Ports 1 - 4)
cover existing 99°/101°, 103°/110°/119° satellites, plus two Flex
Ports (95º sat and 72.5º sat)
Compatable with HR54/44, HR34, H25, HR24, H24, HR23, H23, HR22 H22, HR21, H21, R22, R16, D12 and
HR20, H20 w/.2042 Firmware Update
29 Volt Power Supply Included
DECA "bridge" Technology for IP callbacks and Multi-Room Viewing
(MRV)
When used with DECA adapters, will provide network access to all
compatible receivers, unlike having two SWM8s, which will only pass
network to half the receivers
|
|
SWS-2
$10.00
|
SWS-4
$14.00
|
SWS-8
$18.00
|

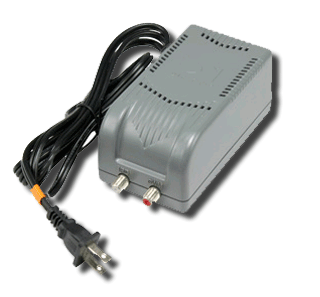

PI-29Z
Power supply for
SWM8 and SWM16
$25.00
|

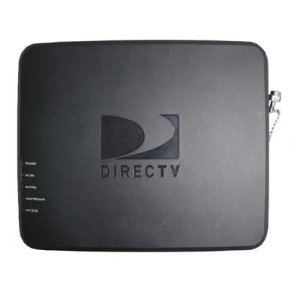

Deca Adaptor
$49.00 |
|
PI-21
21 volt power inserter
$20.00
|

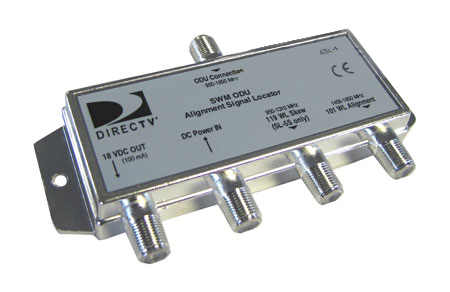

ASL1 (pointing tool)
$22.00
discontinued
check with us
for other options
|
Deca Band-stop-filter
$5.00 |
Deca power supply
$14.00 |
|
DIRECTV
CCK-W Wireless DECA Cinema Connection Kit (CCK-W)
$99.00
|

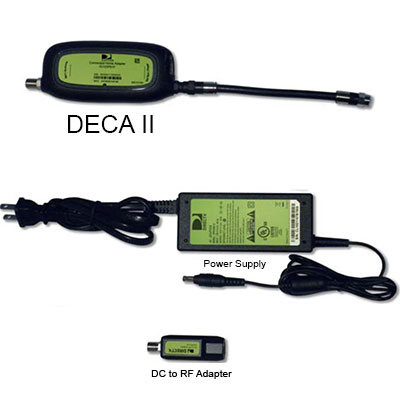

BBDECA2
DirecTV, Cinema Connection Kit w/Pwr Sup
$59.00
|
|
ZINWELL SUP2400 $14.00
|
SUP2400
B-BAND CONVERTER
Required
for all HD receivers that are connected to "multiported"
LNBF (non swm systems)
(only exceptions HR23 and H23)
| Ka
LNB frequencies are between 250Mhz and 750Mhz |
| BBC
up-converts the B-Band into a 1650-2150Mhz |
| This
unit is needed to receive all the new HD Directv
channels |
|
|
|
SUPERBUDDY29 This satellite
meter identifies the satellite by “align-to-lock” or “automatic
scan” and the positive ID multi-lock algorithm eliminate false
positives. It includes a built in 29V module. It comes with a
rugged, durable aluminum case with rubber shock guards.
- Field
replaceable connectors
- Geo-sensitive
“Field Guide” software stores all satellites and transponders
per region
- Zip
code entry provides antenna azimuth and vertical angle settings
- Controls
multi-LNBs / switches with 22kHz / DiSEqC
- Large
back-lit graphic LCD
- Easy
to use single function front panel buttons
- Displays
cross-pole value from HughesNet modems
- Able
to manually enter new satellites using front panel keypad
- Audible
tone for signal lock and peak
- Quick
charge battery with universal AC or vehicle 12VDC
- Computer
interface for future upgrades
- 29V
module built in
|
|
$749.00
|
Make KA/KU dish
installations easy with the SATLOOK
LITE METER
|
|

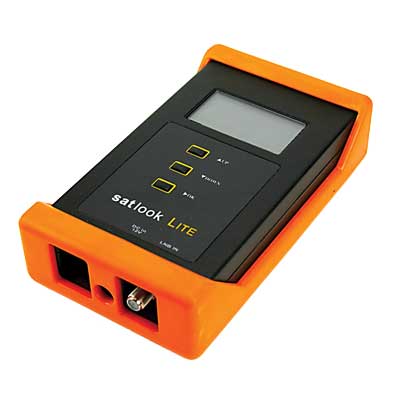

SATLOOK LITE METER
The SatLookLite meter is a simple and tough field
strength meter for most satellite antennas. It can work with virtually any
LNB with the appropriate IF frequencies. It can power the DirecTV SWM LNB
directly from the meter. Satellite Scan feature will display NIT
information coming from the satellite for sure identification. The meter
is preloaded with a wide selection of satellite files and is also
programmable by the user with a special Sat-Edit utility. F connector is
field replaceable with any high-frequency capable F-81
The meter comes complete with 9.6V, 2600mAh NiMH rechargeable
battery pack, a wall charger, a vehicle charger and a thick padded
protective carrying case with strap
$299.00 |
|
DIRECTV SATELLITE DISH ACCESSORIES |
MULTISWITCH'S
Zinwell, Eagle Aspen, Perfect
Vision, Tradewind, and Spaun
(Spaun products not shown, call for info)

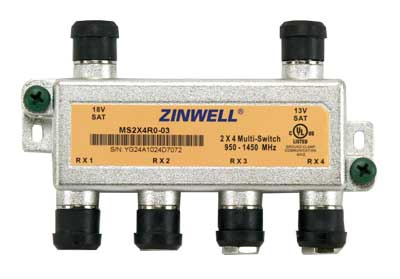

| MS2X4WB (Zinwell
2X4 Multiswitch) $18.00 (Call
to order 413-467-3278) |
|
|
#
Use with standard (Dual LNBF 18" round dish)
# Converts 2 inputs to 4 outputs (4 receivers)
# Weather seals for outside installations |
DTV3X4 DirecTV Approved 3x4
(Zinwell, Eagle Aspen, Perfect Vision)
Multiswitch (DTV3X4)
$19.00 (Call
to order 413-467-3278)
|
|
|
|
Split your signal from
a standard dual LNB DIRECTV dish into 4 outputs. |
|
|
|
| • DTV
3X4 Mini Max 2x4 Multi-Switch |
| • Frequency:
40 - 2150 Mhz |
| • Optional
OFF-AIR (UHF/VHF) or cable input |
| • Diplexers
at the recevier end are not required if not using the optional OFF-AIR
(UHF/VHF) or cable input |
| • Compatible
with standard RG-6 coax cable |
|
| Rack mountable multiswitch's
(Holland) (Call
to order 413-467-3278) |
|
|

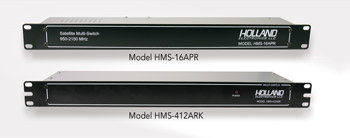

RACK
MOUNTED MULTISWITCHES
Single
Satellite Switch
The HMS-16APR is a rack mounted multiswitch specifically designed for
SMATV applications. The switch generates the voltage required for
powering a dual LNB (13 & 18 volts). Also provides amplification to
help overcome the insertion loss of the 16 outputs.
$189.00
Multi-satellite Switch
The HMS-412ARK is a 4 LNB input, 12 output multiswitch designed to
provide solid state multi-sat switching for head-end systems. This unit
provides 13 and 18 volts as well as 22 kHz tone to lock the LNB’s on
the required satellites.
$199.00
|

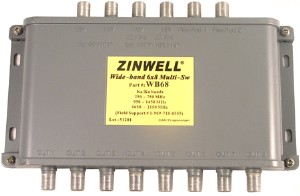

Zinwell 6x8
multiswitch designed to interface with 99°/101°/103°/110°/119° DIRECTV
satellites. Can be used with DIRECTV Phase 3, AT9/AU9 Ka/Ku satellite dish's for
MPEG-2 or 4
compression
Needed for all HD compatible receivers unless choosing SWM equipment.
| • 6X8 Multiswitch is passive,
powered only by the connected satellite receivers |
| • Wideband frequency
multiswitch: 250-750 Mhz, 950-1450 Mhz, 1650-2150 Mhz |
| (Call
to order 413-467-3278
) |
|
6X8 $39.00
|
Option
for 16 outputs
Kit includes 2 - 6X8 WB Multiswitch's
4 - 2 way power passing splitters
8 - Coax jumpers
6X16
$119.00
|
LNBF's
|
Dual LNBF $24.00 |
Heated dual LNBF $89.00
|
|
SL3 (multiport)
$39.00 |
SL5 (multiport) $48.00
|
KU-band (Offset dish's)
|
Andrew 1.2 meter
w/AZ/EL Mount, feed legs, and hardware
$219.00
|

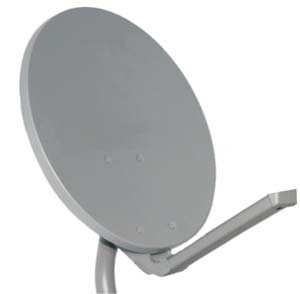

Winegard (universal or
"D" tube)
30" $75.00
24"
$58.00
18"
$45.00
|
|
|
|
|
2"
"J" mount
$20.00 |
2"
"S" mount
$20.00 |
|
|
|
|
|

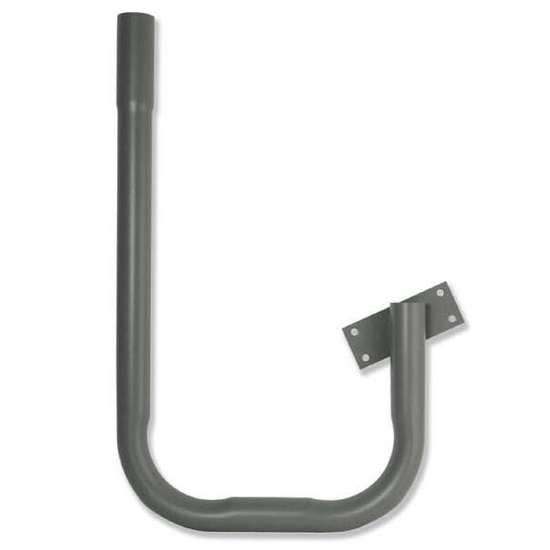

2" under
eve mount
$20.00 |

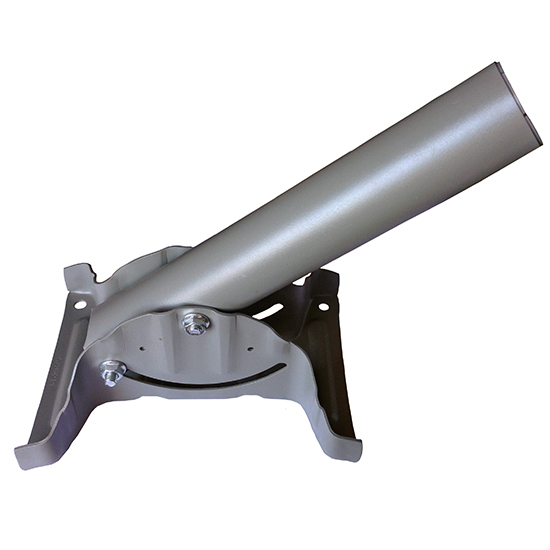

2" low
profile mount
$20.00 |
|
|
|
SUPPORT ARMS
for DTV AU-9
(or any 2" mast) |
|
DTV - AU9LB
LONG BRACE
$8.00
|
DTV - AU9SB
SHORT BRACE
$8.00
|
|

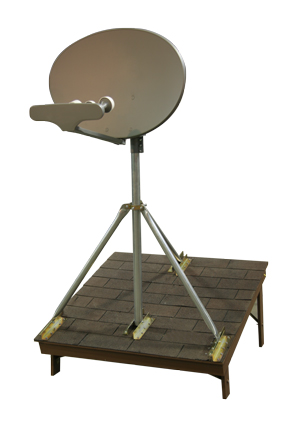

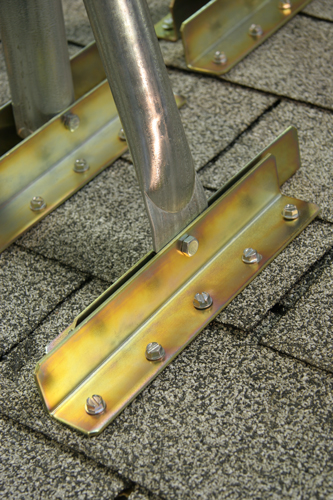

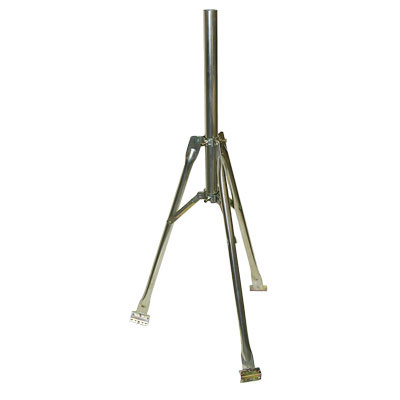

Perfect
Vision, 3' Tripod Kit w/28"x2" OD Pole Incl
$29.00
|
Winegard,
Chimney Mount for 18" & 24" Dishes
$39.00
|
|
|

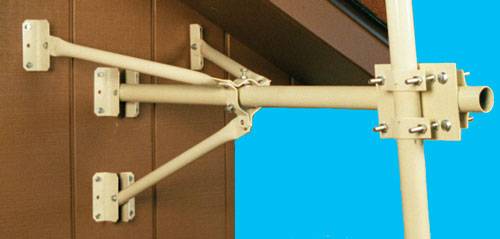

Commercial
Heavy Duty Adjustable WallMount |
|
|
|
#Adjusts from
5" to 30"

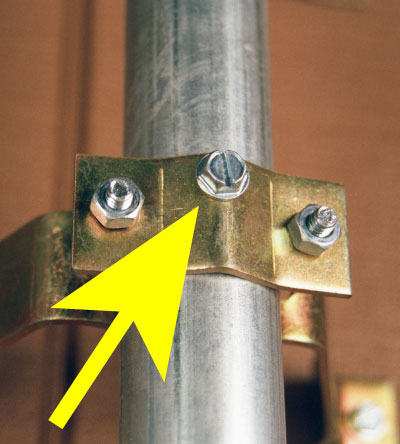

#Positive anti-turn feature
|
|
|
|

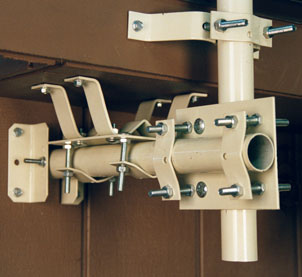

Under Eave
Mounts |
|
|
|
• Fully
Adjustable
• Any Length
• Any Angle
Completely
Assembled
Supported on
rear, bottom & front
Can be custom
made to your specifications
Call
413-467-3278 |
|
|
|
|
|
NON
PENETRATING ROOF MOUNTS
# NPR6B 1
3/4" & 2" OD FLIP MAST $69.00
(USE WITH ANY STANDARD DISH, OR SLIMLINE
AND INTERNATIONAL DISH)
(uses 8 blocks for balist)
#

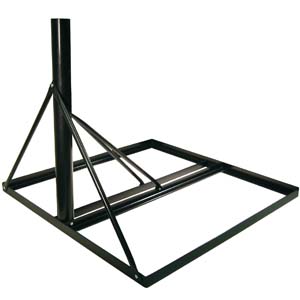

NPR4 2 3/8" OD MAST
$79.00
(USE WITH HUGHESNET, AND MANY COMMERCIAL
APPLICATIONS)
(uses 8 blocks for balist)
# NPRMAT8
37.9" X 35.375" RUBBER MAT $24.00
(USE
UNDER MOUNTS FOR ADDITIONAL PROTECTION)
|
|
|
|
|
ACCESSORIES
- Extra Heavy Duty T.V.
masting
- Heavy plastic coated clear Guy
Wire
- Lag Screws
- Guy Rings
- Guy Hooks
- Turnbuckles
- Tar Pad Kits
- Replacement Feet Kits
- Collar Bolt Kits
|
ADDITIONAL
PRODUCTS
WALL MOUNTS
- 2" - 3" - 4" - 6" - 8" - 12" -
18" - 24"
CHIMNEY MOUNTS
VENT MOUNTS
BRACKETS
MAST
CALL
413-467-3278 |
|

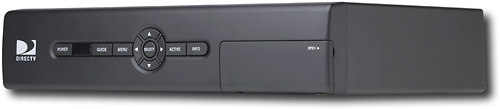

D-12
GTV PRICE $69.00 |
H-24 (HD)
GTV PRICE $99.00
|
|
R-16 (RECEIVER/DVR)
GTV PRICE $99.00 |
HR-24 (HD RECEIVER/DVR)
GTV PRICE $199.00
|
|
PLEASE
READ
Receivers
must be activated within 30 days of purchase, DVR service fee, and HD
access fee may be required.
Receivers are sold as leased equipment. Once activated for service Directv
assumes ownership.
If new receiver is added to customers existing acct, a $6.00 monthly
charge will be applied by Directv for programming.
DIRECTV® now requires a 24 month commitment, and all equipment must be
returned to DIRECTV® if customer cancels service with DIRECTV®
Directv lease agreement
(Call to
order 413-467-3278)
|
|
NOTE
H24 and HR24 installed on systems that are not SWiM (require B-Band
converters)
|
|

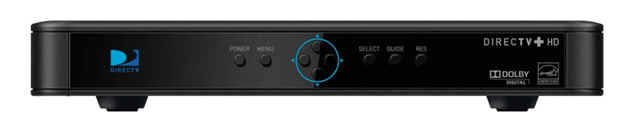

H-25
|
|
DIRECTVs
smallest HD Receiver yet, the H25 is wall mountable and easily
tucked behind a TV.This is the first receiver that requires
connection to a SWM system
|
|
| ● |
Faster
guide surfing, and channel changing |
| ● |
Wall
Mountable (Optional
wall/TV mounting bracket)
availability TBD |
| ● |
H25
Receiver Dimensions: Width 8.66" Height 1.12"
Depth 5.75" Weight 1.19 lbs. |
| ● |
Integrated
Deca technology |
| ● |
3D
Ready Receiver |
|

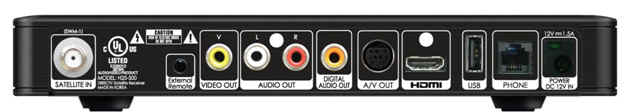

• Push button
front panel
• Single composite A/V (RCA Type) out
• Combo component/composite out mini-DIN-10 (optional)
• External power supply (The H25 uses a DIRECTV EPS10 series external
power supply)
• SWiM only SAT-IN Tuner
Receivers
must be activated within 30 days of purchase, DVR service fee, and HD
access fee may be required.
DIRECTV® now requires a 24 month commitment, and all equipment must be
returned to DIRECTV® if customer cancels service with DIRECTV®
(Call to
order 413-467-3278)
H25
SWM
SYSTEMS ONLY
GTV PRICE $99.00
|
|
|
|
|
|
|
|

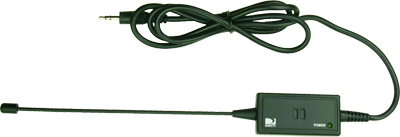

H25RFANT
(RF antenna dongle
adaptor)
$12.00
|
|
|
|

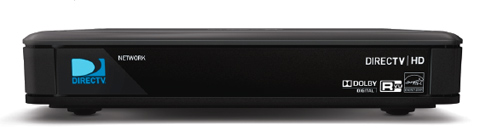

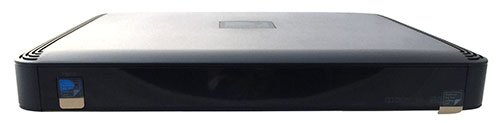

RVU-C31/41/61K
|
DIRECTVs
smallest box ever is the Genie Approved C31 RVU Client.
When used with the HR34/44/54 Super DVR this box provides full
DVR functionality in a box less than 5.5 wide.
Experience DoublePlay, full fast-forward and rewind
function, schedule recordings and use interactive
features.
|
|
Builtin
RF remote capability
(rf
remote optional) |
| ● |
Now
record 5 shows in HD at once, all with one
central DVR. No more recording conflicts! |
| ● |
Record
and download DoD programs on every TV Client/HD
Receiver |
| ● |
Watch
recorded shows on every TV Client/HD Receiver |
| ● |
Record
and delete shows from every connected TV/HD
Receiver |
| ● |
Supports
480i, 480p, 720p, 1080i and 1080p resolutions
C61K also supports 2160p
(4ktv) |
|
|
RVU-C31/41
DIRECTV CLIENT
(use
with HR34/44/54)
$99.00
C61K
(use with HR54 for 4ktv)
|
|

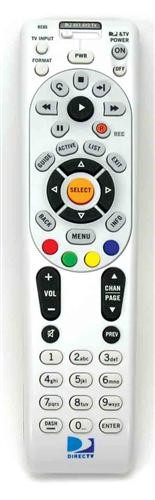

RC65
(standard
IR)
$9.00
|

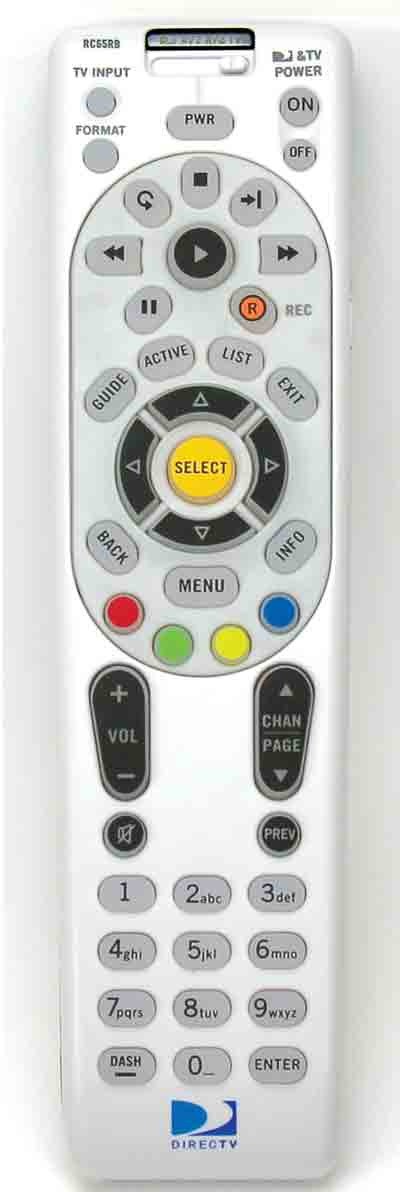

RC65RBX
(universal
IR/RF backlit)
$19.00
|

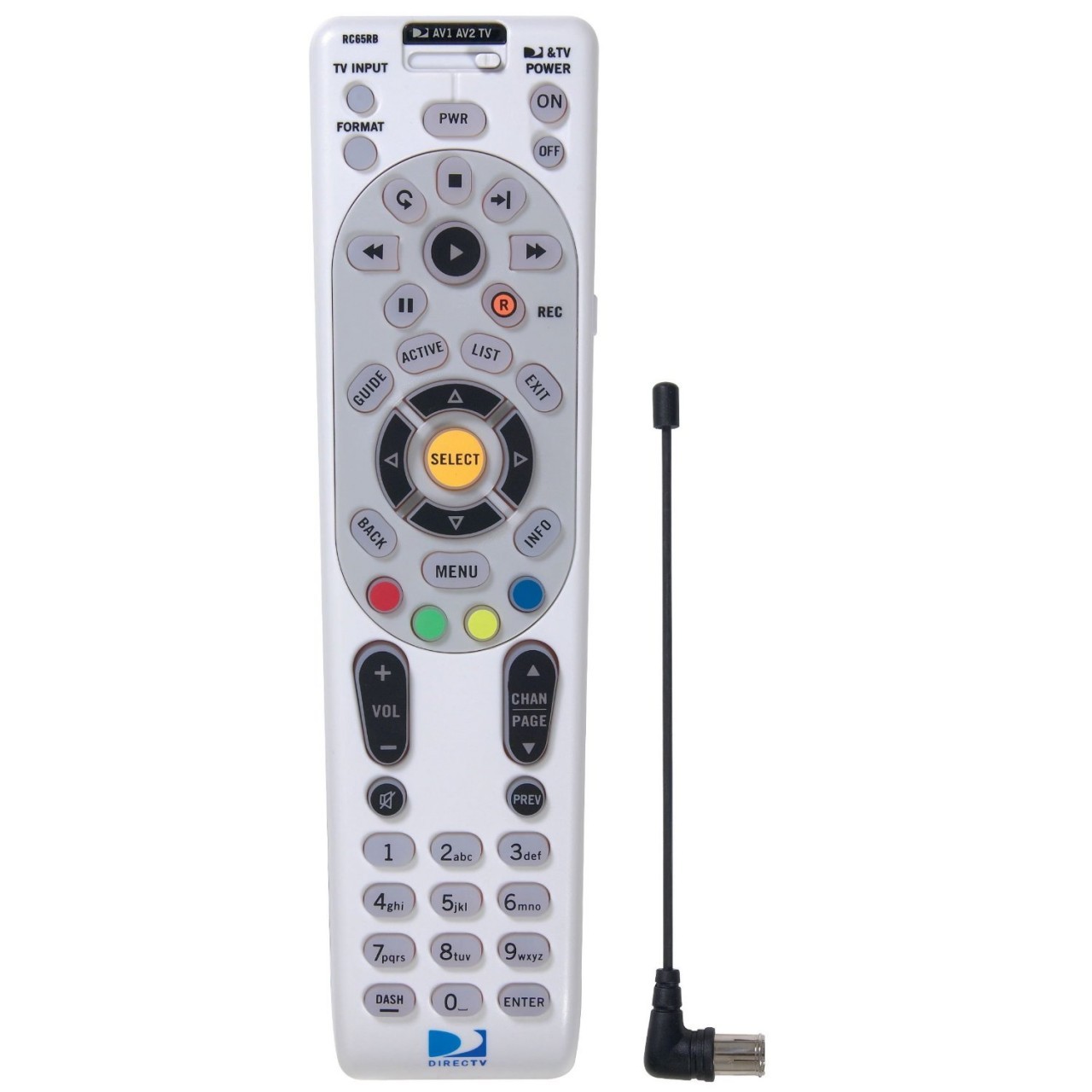

RC65RBK
(universal
IR/RF w/antenna)
$25.00
|
|
|
|
|

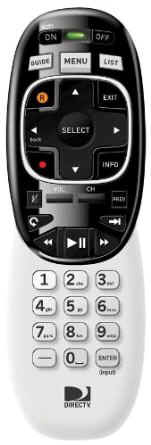

RC71
(for
HR34/44/54 GENIE)
$29.00
|
|
HR54
"GENIE" |
|
|
|
|
|
|
|
The
HR54 Genie DVR is DIRECTVs solution for recording live 4K
satellite TV (when available.) The Genie Home Media Center HD
DVR finally eliminates recording conflicts. You can record up
to 5 shows at once with one central DVR, and then watch them
in any room of your house. Add Picture-in-Picture and a 1TB
hard drive and you have the best DIRECTV offers
|
- Record
4K content (C61K Client or DIRECTV 4K Ready TV required to
view)
- Stream
3 recordings to secondary rooms
- Requires
7 SWM channels (unit counts as 7 lines/tuners from the SWM
switch)
- Supports
720p, 1080i, 1080p and 2160p resolutions
- RF
Capable with the Genie remote.
- Wireless
built in for direct internet connection
- Provides
DIRECTV Whole-Home DVR Service in 4 active rooms
- Store
Up To 200 hours of HD programming
- Watch
2 shows at once without having to change channels
SWM
SYSTEMS ONLY
GTV PRICE $299.00
|
|
|
|
|

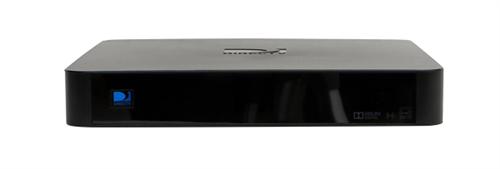

H44
"GENIE LITE" |
|
|
The
H44 Genie Lite brings Genie function to a whole new level at
an amazing price! Start with the Genie Lite and add client
boxes or DIRECTV-ready Smart TVs. When youre ready, add a
DIRECTV-branded hard drive to convert the Genie Lite into a
5-tuner DVR! DVR function requires a specific hard drive
available only from DIRECTV.
SWM
SYSTEMS ONLY
GTV PRICE $99.00
|
|
|
|
RECEIVER MANUALS
MODEL # D10 D10-200 D10-300 D11
D12 R10 R15
R22
H10 HR10-250 H20
H21 H23
H24
HR20
HR21
HR21P
HR22
HR23
HR24
H25
HR34/44
HR54
|
MORE ACCESSORIES: (call for ordering and assistance
413-467-3278)
# SPLITTERS
# DIPLEXERS
# AMPLIFIERS
# COVERS
# FITTINGS
# COUPLERS
# CABLE > RG6 single or dual, w/wo/messenger, UL rated swept to 3ghz
# PLENUM CABLE
# GROUNDING SUPPLIES > blocks single/dual/quad, fasteners, wire
# TOOLS > cutters, strippers, crimpers, testers
# HOTSHOT SNOWGUARDS: HOT SHOT 3
|
